Advanced Nano Technology Co.,Ltd.
FEATURES
- Ultra High Pressurized slurry flow design,with the best formation of diamond disks, & efficient nozzle arrangement is able to :
- ensure the perfect development and collapse of cavities, discharging such high energies (Cavitation Damage)
- improve the basic functions, crushing, dispersing, emulsifyiung, by such a high efficient cavition damage
- provide longer parts life
- Long established experience in designing, manufacturing, and engineeing ensures :
- better man / machineinterface
- easy cleaning, maintenance of the systems

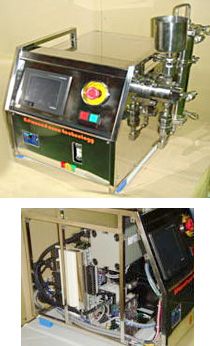

MODEL DSU-2515P16
MODEL LSB/U-2010P1

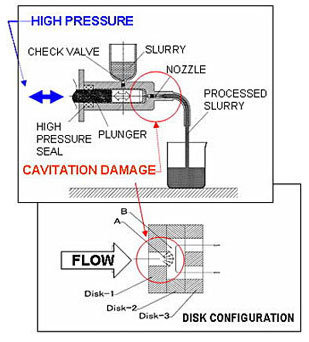

SYSTEM CONCEPT
APPLICATIONS
- PIGMENT
- CARBON BLACK
- CMP SLURY
- RARE METALS
- NICKEL
- ALUMINA
- ZIRCONIUM
- CARBON NANO TUBE
- COSMETIC MATERIALS
- CERAMICS
- FERRITE MIX POWDER
- ALUMINUM CHLORIDE
- CARBON MATERIAL
- DRUG MATERIAL
- METAL POWDER
- GRAPHITE
- SILICA
- FOOD ADDITIVES

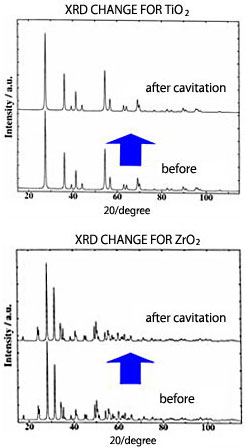

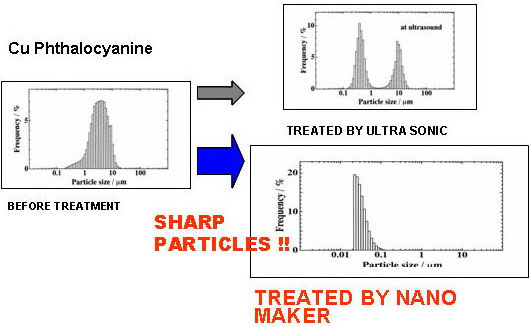

TEST DATA
| MATERIALS | PROCESSING | SOLVENT | |
| D50 (μm) |
D90 (μm) |
||
| ALUIMINA | 3.41 | 5.10 | WATER |
|---|---|---|---|
| INDIUM | 0.34 | 2.12 | ETHANOL |
| CARBON BLACK |
25.13 | WATER | |
| COBALT | 6.72 | 11.80 | |
| ZINC OXIDE |
3.60 | 6.70 | WATER |
| TITANIUM OXIDE |
19.20 | ||
| MAGNETIC MATERIAL (MSG-W11) |
0.38 | ||
| ZIRCONIUM | 26.80 | WATER | |
| CALCIUM CARBONATE |
0.45 | 1.51 | WATER |
| NICKEL | 0.88 | 4.47 | |
| γ-HEMUTITE | 2.00 | ||
| LITIUM ALUMINATE (LiAIO2) |
19.78 | ||
| MATERIALS | PROCESSING | REMARKS | |
| D50 (μm) |
D90 (μm) |
||
| ALUIMINA | 1.98 | 3.40 | 150MPa/1Pass |
|---|---|---|---|
| INDIUM | 0.08 | 0.12 | 130MPa/3Pass |
| CARBON BLACK |
0.98 | 130MPa/2Pass | |
| COBALT | 1.73 | 2.98 | 150MPa/3Pass |
| ZINC OXIDE | 0.45 | 1.32 | 100MPa/3Pass |
| TITANIUM OXIDE |
0.23 | 100MPa/3Pass | |
| MAGNETIC MATERIAL (MSG-W11) |
0.08 | 100MPa/5Pass | |
| ZIRCONIUM | 0.46 | 100MPa/3Pass | |
| CALCIUM CARBONATE |
0.18 | 0.24 | 150MPa/3Pass |
| NICKEL | 0.41 | 0.52 | 150MPa/3Pass |
| γ-HEMUTITE | 0.43 | 100MPa/3Pass | |
| LITIUM ALUMINATE (LiAIO2) |
0.32 | 100MPa/3Pass | |
LINE UP
LSU-2010P14
MAX PRESSURE
(MPa)
200
MAX FLOW RATE
(L/h)
10
CONSUMPTION OF
ELECTRICITY (k/W)
1.5
DIMENSION
(W×D×H/mm)
600(W)×550(D)×400(H)
DRIVE
AC 200V
REMARKS
FOR LABO &
SMALL PRODUCTION
DSU-2515P16
MAX PRESSURE
(MPa)
250
MAX FLOW RATE
(L/h)
15
CONSUMPTION OF
ELECTRICITY (k/W)
2.5
DIMENSION
(W×D×H/mm)
700(W)×700(D)×1400(H)
DRIVE
AC 200V
REMARKS
CHILLED WATER NEEDED
PR-***/***
MAX PRESSURE
(MPa)
30～200
MAX FLOW RATE
(L/h)
30～3,000
CONSUMPTION OF
ELECTRICITY (k/W)
3.7～5.5
DIMENSION
(W×D×H/mm)
CUSTOMER REQUIREMENT
BASIS
DRIVE
REMARKS
